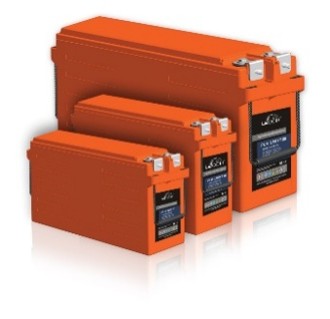

PLH series - Very long life thin-plate Pure Lead AGM
The PLH Series are AGM VRLA batteries in a 12V and front terminal format. Engineered and optimized for very long float life in critical standby applications such as telecom, UPS, railways and emergency lighting and back-up power. The thin plate pure lead AGM design provides superior temperature robustness, high-rate discharge and fast charge performance compared to traditional alloyed-lead designs.
General Features
- Front terminal design makes PLH batteries ideal for 19-inch or 23-inch telecom cabinets.
- Shielded design terminal caps and patented anti-explosion one-way vent valve design to minimize water loss and increased safety.
- Thin plates using a special pasting formula ensures long service life.
- True Pure Lead design and manufacturing offering Very Long Design Life in accordance to Eurobat (up to 20 years @ 20°C).
- Pure Lead design makes PLH series ideal for high temperature applications
- Premium ABS+PC jar & covers flame retardant to UL94-V0.
Specifications
| Model | Nominal Voltage (V) | Rated C10 to 1.80V/cell (Ah) | Approx. Dimensions | Approx. Weight (kg) |
Terminal Type | |||
|---|---|---|---|---|---|---|---|---|
| L | W | H | TH | |||||
| mm | mm | mm | mm | |||||
| PLH40FT(A) | 12 | 38 | 298.7 | 97 | 184 | 184 | 12.5 | T6(M6) |
| PLH62FT(A) | 12 | 62 | 298.7 | 97 | 267 | 267 | 19.1 | T6(M6) |
| PLH90FT(A) | 12 | 90 | 405.4 | 108 | 287 | 287 | 28.7 | T8(M6) |
| PLH100FT(A) | 12 | 100 | 405.4 | 108 | 287 | 287 | 30.8 | T8(M6) |
| PLH110FT(A) | 12 | 110 | 559 | 125 | 227 | 227 | 36.5 | T8(M6) |
| PLH150FT(A) | 12 | 150 | 559 | 125 | 277 | 277 | 48 | T8(M6) |
| PLH170FT(A) | 12 | 170 | 559 | 125 | 320 | 320 | 54.2 | T8(M6) |
| PLH190FT(A) | 12 | 190 | 559 | 125 | 320 | 320 | 57.6 | T8(M6) |
| PLH210FT(A) | 12 | 210 | 559 | 125 | 328 | 328 | 60.5 | T8(M6) |
